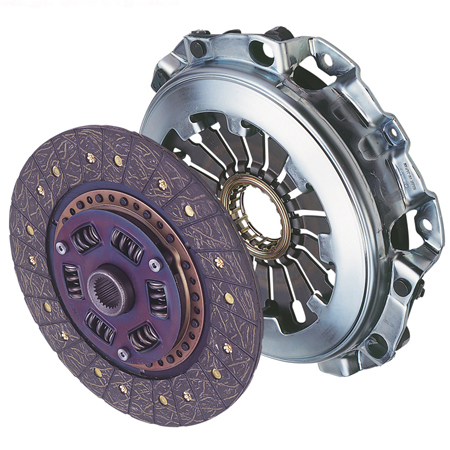

Exedy Stage one Organic Clutch Kit - Proton Satria C90 10/1999 - 01/2007
Engine: 4G93 1.8l
Part Number: MK09H210
Clutch Type: Stage 1 Organic
Friction Facing: Organic
Disc Diameter (mm): 215
Sprung Centre: Yes
Clamp Load (N): 6914
Torque at Flywheel: 200 lb-ft / 270 Nm
Torque at Wheels: 160 lb-ft / 220 Nm
The Stage 1 Organic clutch incorporates friction material with high heat-resistance properties and high strength fibres making it an ideal clutch for street, circuit or drifting.
CLUTCH COVER
Single Series clutch covers are designed to achieve a clamping load that is approximately 40% higher than the genuine part enabling a higher torque capacity. Ductile material is used for all pressure plates and high burst strength can be achieved in all temperature ranges.
CLUTCH DISC
An asbestos free friction facing is used which has high heat resistance and high burst strength characteristics. No steel back is required which can cause RPM "lock-out" and/or synchro damage. Superior in shift operations and half-engagement feel, this clutch disc is recommended for any motorsport or modified vehicle use.
